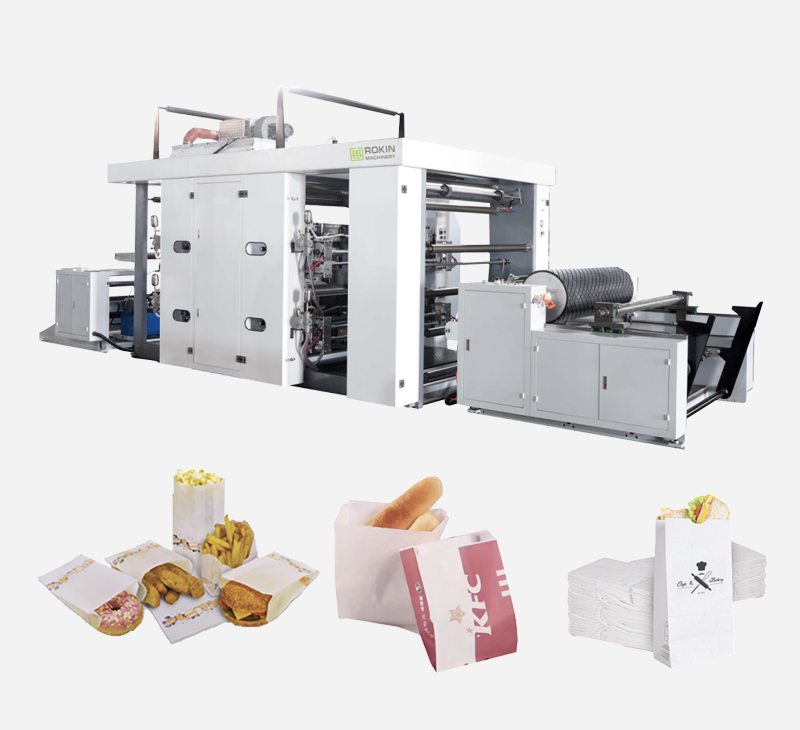

Four Colors Flexo Paper Printing Machine

The Four Colors Paper Printing Machine is a sophisticated piece of equipment designed for high-quality, multi-colored printing on various paper materials, including those utilized in the production of paper bags. Incorporating advanced technology, this machine efficiently prints four colors directly onto the paper, allowing for vibrant and intricate designs that enhance the appeal of the final product.
In the context of paper bag manufacturing, the Four Colors Paper Printing Machine plays a pivotal role. It seamlessly integrates with paper bag machines, also known as paper bag making machines, by providing the beautifully printed sheets that serve as the foundation for these environmentally friendly and versatile packaging solutions. The printed paper is then fed into the paper bag machine, where it undergoes a series of precise processes to transform into sturdy and stylish paper bags.
The synergy between the Four Colors Paper Printing Machine and the paper bag machines ensures that each step of the production process—from printing to bag formation—is executed with precision and efficiency. This results in a seamless workflow that produces high-quality paper bags with captivating designs, making them ideal for a wide range of applications, from retail packaging to promotional giveaways.
In summary, the Four Colors Paper Printing Machine, in conjunction with paper bag machines/paper bag making machines, forms a powerful combination that revolutionizes the production of visually stunning and functional paper bags.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

0


The Four Colors Flexo Paper Printing Machine is a state-of-the-art device that allows for high-quality printing on paper surfaces. With four different color options, this machine provides impeccable precision and vibrancy of colors. It is designed to handle a wide range of paper materials, including newsprint, packaging, and even cardstock. The machine is equipped with advanced technology that ensures consistent print quality while minimizing the risk of wastage. The Four Colors Flexo Paper Printing Machine is an ideal solution for businesses looking to enhance their printing capabilities, ultimately leading to a superior finished product.



This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.



Main Technical Parameter


Model

RKP4-1000

RKP4-1200

RKP4-1400

Colors

4 colors

4 colors

4 colors

Max. Printing material width

1000mm

1200mm

1400mm

Max. Printing width

960mm

1160mm

1360mm

Printing length range

230-1000mm

230-1000mm

230-1000mm

Max. Printing speed

5-100m∕min

5-100m∕min

5-100m∕min

Register precision

≤±0.15mm

≤±0.15mm

≤±0.15mm

Thickness of plate

2.28mm+0.38mm(can be customized)

2.28mm+0.38mm(can be customized)

2.28mm+0.38mm(can be customized)

Max. Rewinding diameter

1300mm

1300mm

1300mm

Max. Unwinding diameter

1300mm

1300mm

1300mm

Power supply

AC 380V, 50Hz

AC 380V, 50Hz

AC 380V, 50Hz

Rated power

21Kw

21kw

24 kw

Machine dimension

8200X2100X2800mm

8200X2300X2800mm

8200X2500X2800mm

Machine weight

5400Kg

5600kg

5800 kg


Finished product samples

0  0 0  0  0  0
