You are here: Home » Full Automatic Paper Bag Machine » V Bottom Paper Bag Machine

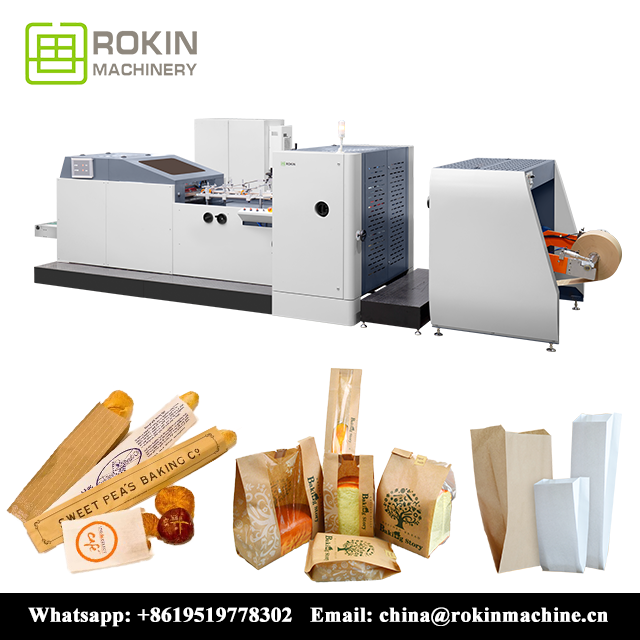

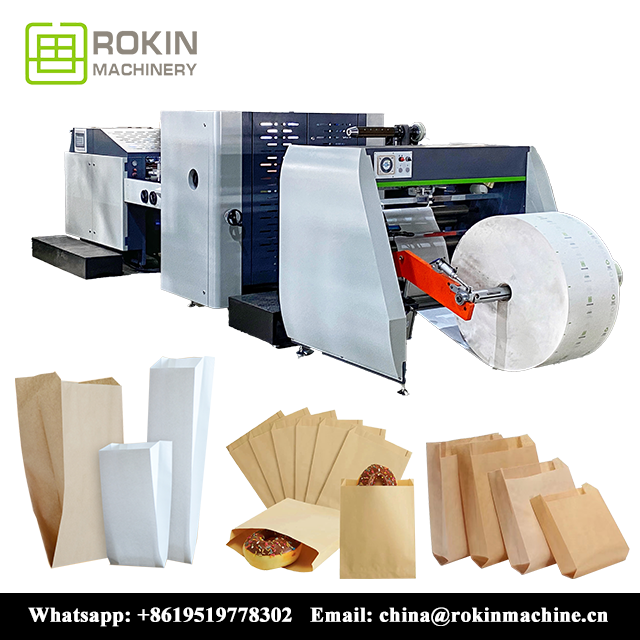

V Bottom Paper Bag Machine

The V Bottom Paper Bag Machine is a piece of equipment that revolutionizes the way paper bags are produced. This machine has emerged as an efficient solution for businesses looking to create high-quality paper bags that are both innovative and functional. With this machine, paper bags can be made with a unique V shape at the bottom, which ensures that the bags stand upright even when they are empty. The machine is equipped with advanced technology that ensures precision in the bag-making process. The user-friendly interface allows for easy operation, while the automatic feeding mechanism ensures that the paper rolls are fed into the machine smoothly. Additionally, the machine features a high-speed production capability, ensuring that businesses can meet their production targets in a timely manner.

V Bottom Paper Bag Machine

The V bottom paper bag machine is a technology revolutionizing the paper bag manufacturing industry. It produces bags with a distinct V shape at their base, enabling them to remain upright even when empty. This design offers a significant advantage over conventional bags, ensuring they stay in shape and do not collapse. Investing in this machine is ideal for companies looking to create high-quality, long-lasting paper bags that offer both innovation and practicality. The V bottom paper bag machine is multi-purpose and can generate customized bags in diverse sizes and shapes. It comes with advanced technology and boasts user-friendly features to make it easy to use. Investing in this device can help businesses increase their output capacity, save money, and enhance consumer satisfaction.

Sample

One V Bottom Paper Bag Making Machine With Multiple Options

184

2 Colors Inline Printer:

Using this 2 colors inline flexo printing machine, you can easily print images, patterns, and other designs on your finished product using various printing methods and flexibility.
183

4 Colors Inline Printer

The V Bottom Paper Bag Making Machine with 4 colors inline printer is a highly advanced machine designed to produce high-quality paper bags with intricate designs and patterns. The device provides exceptional precision, ensuring the finished product meets exacting quality standards.
216

Window Unit:

The V Bottom Paper Bag Making Machine with window unit is an innovative machine designed to create paper bags with special windows. This feature allows customers to see the bag's contents, making it an ideal option for packaging food items or other products that require visibility.
217

Strip Unit:

The V Bottom Paper Bag Making Machine with a strip unit is an advanced machine designed to create paper bags with a unique strip feature. This particular strip unit allows for added convenience and ease of use when carrying the bag, making it a popular option for businesses in the retail and food industry.

V Bottom Paper Bag Machine

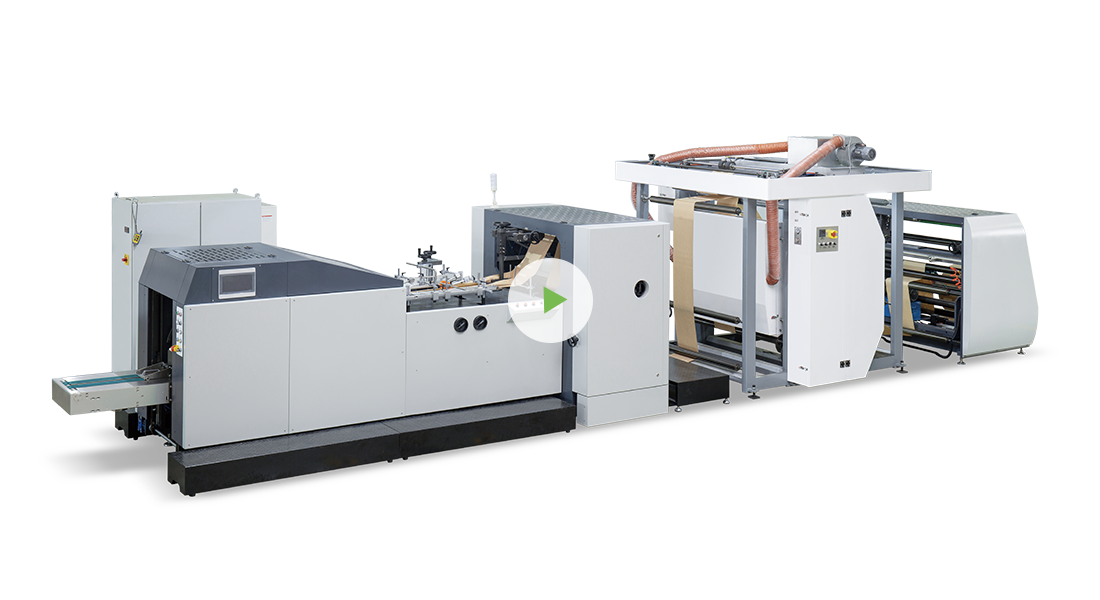

  • Video
  • Technical Sheet


    Model RKJD-250 RKJD-350
    Paper bag production speed 50-600pcs/min 50-700pcs/min
    Max. Machine speed 70m/min 110m/min

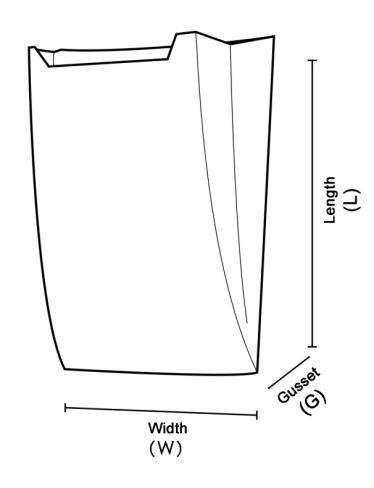

    Paper bag cutting length (C) 110-450mm 155-715mm
    Paper bag width (W) 70-250mm 70-350mm
    Side insert width（G） 20-120mm 20-120mm
    Bag mouth height 15/20mm 15/20mm
    Paper thickness 35-80g/m2 35-80g/m2
    Paper roll width 100-760mm 100-980mm
    Power 10KW 20KW
    Weight 4500 KGS 6500 KGS
    Dimension L6800*W1600*H1600mm L7500*W2300*H1800mm

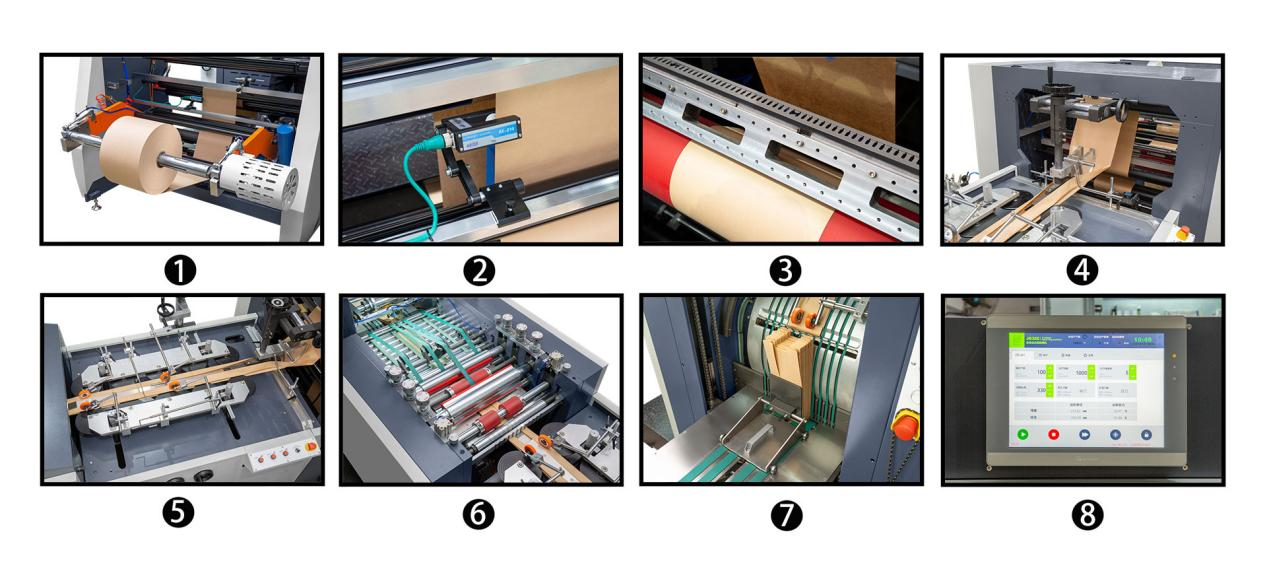

  • Equipment Details


  • Features
    Capable of producing paper bags with a V-shaped bottom
    Can handle various types of paper, including kraft paper and white cardboard
    Adjustable bag length and width
    Automatic counting and stacking of finished bags
    PLC control system for precise and efficient operation
    Equipped with a color touch screen for easy operation and monitoring
    High-speed production rate, up to 220 bags per minute
    Optional features such as hot-melt glue or cold-glue systems for bag sealing
  • Partner


Related Machines
Full automatic paper bag machine with twisted handle RKHF-450BT
Full automatic paper bag machine with flat handle RKHF-330F
RKHF-330TF Full automatic paper bag machine with twised & flat handle
Paper bag machine RKFD-330 with square bottom
Paper bag machine RKFD-190 with a square bottom
Paper bag machine RKFD-190 with a square bottom
RKJD-350 V bottom paper bag machine

FAQ

Rokin manufactures fully automatic paper bag machine, square bottom paper bag making machines, v bottom paper bag forming machines, cardboard slitting machines and so on. We have excellent engineers specializing in automatic bag making machines and have over 20 years of experience in manufacturing packaging equipment.

  • Q Are you manufacturer or trading company?

    A We are the manufacturer and have over 200 workers.

  • Q Where is your factory located? May I have a visit?

    A Warmly welcome! Our factory is located in Wenzhou city.

  • Q How is the quality of your machine?

    A We are in machine manufacturer over 20 years and regard quality as the life of the enterprise.We choose the world famous manufacturers as our suppliers. And besides, we have our own quality inspector.Machine parts are checked one by one according to the drawings! Good quality and good after-sales help us obtain good reputation in the international market! We have a technical team of seven person and at the same time cooperate with other Research Institutes.We are committed to providing customers with the best packaging machine.

  • Q What information should I let you know if I want to get a quotation?

    A First, paper raw material: reel paper or sheet paper.
    Second, sizes of the paper bag, thickness of paper.
    Send sample bag picture if available.
    Then we will recommend the right machine to you!
