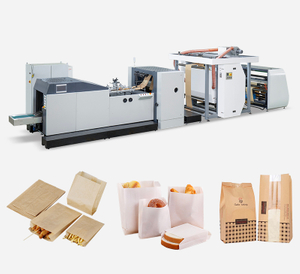

RKDZ-220 Full Automatic Sheet Feeding Paper Bag Machine

The automatic sheet-feeding paper bag machine stands as an exemplary solution for large-scale paper bag production, serving as the premier choice for medium to high-end handbag manufacturing. This innovative product integrates mechanical, electrical, optical, and pneumatic technologies, incorporating several proprietary advancements. Utilizing sheet paper as its primary raw material, the machine is capable of completing the entire production process in a single operation. This includes paper feeding, precise positioning, die-cutting, reinforced paper gluing, reinforced paper pasting, top folding, tube forming, gusset forming, square bottom folding, and gluing, culminating in the automatic compaction and output of finished bags.

The machine's variable speed drive technology, in conjunction with a sophisticated system of vertical and horizontal creasing and bottom folding, facilitates a seamless trackless bag molding process. This ensures that the production of paper bags is not only efficient but also maintains a high standard of quality and consistency.

The paper bag making machine is designed to meet the demands of modern manufacturing, offering a streamlined approach to producing high-quality paper bags. Its advanced features and automated functions make it an indispensable asset for businesses seeking to enhance their production capabilities and meet the growing market for eco-friendly packaging solutions.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

单张纸带样品800*730

The RKDZ-220 Full Automatic Sheet Feeding Paper Bag Machine is a game-changer in the world of paper bag manufacturing. This machine is fully automatic, which means that it can produce high-quality paper bags with minimal human intervention. The design of this machine is such that it can feed sheets directly into the machine and generate customised bags according to your business needs.
One great thing about this machine is its versatility. It can create different sizes, shapes and designs of paper bags without needing any additional adjustments or settings change. You can easily switch between various bag types with just a few clicks on the control panel.
Another amazing feature of this machine is its speed. With a maximum production rate of 200 bags per minute, you'll be able to keep up with even the highest demands from your customers! Plus, its error detection system ensures that there are no mistakes made during production.
If you're looking for an efficient way to increase your paper bag production rate while maintaining quality standards, then the RKDZ-220 Full Automatic Sheet Feeding Paper Bag Machine will be perfect for you!


Model

RKDZ-220

Paper bag width

110-240mm

Bag bottom width

60-120mm

Paper sheet width

380-700mm

Paper sheet length

240-440mm

Kraft paper thickness

100-200g/m2

Art paper + PP Laminating

120-230g/m2

Recommend that paper thickness above 200gsm, need die cutting before operation.

Glue type

Water glue

Hot glue system

Punching hole distance

60/100mm

Punching hole diameter

Ø4/5/6mm

Max. speed

50-85pcs/min

Power

12KW, 380V/50HZ

Weight

10000KGS

Dimension

L14700*W1930*H1700mm



0


Sheet feeding paper bag machine adopts sheet paper, reel reinforced paper and twist rope paper as material to produce paper bags in one time. The process contains handle making, handle pasting, top folding (or without top folding), tube forming, gusset folding, bottom pasting, compaction output or reinforced paper pasting, top folding, tube forming, gusset folding, eyelet punching, bottom pasting and compaction output. Three bag types are all available on this machine. Based on the traditional machine mechanical handle/patch cutting unit, this machine updated to servo cutting system which has a much more compact structure. Shorter setup time, safer working condition, bigger and convenient operation space are all its advantages.
